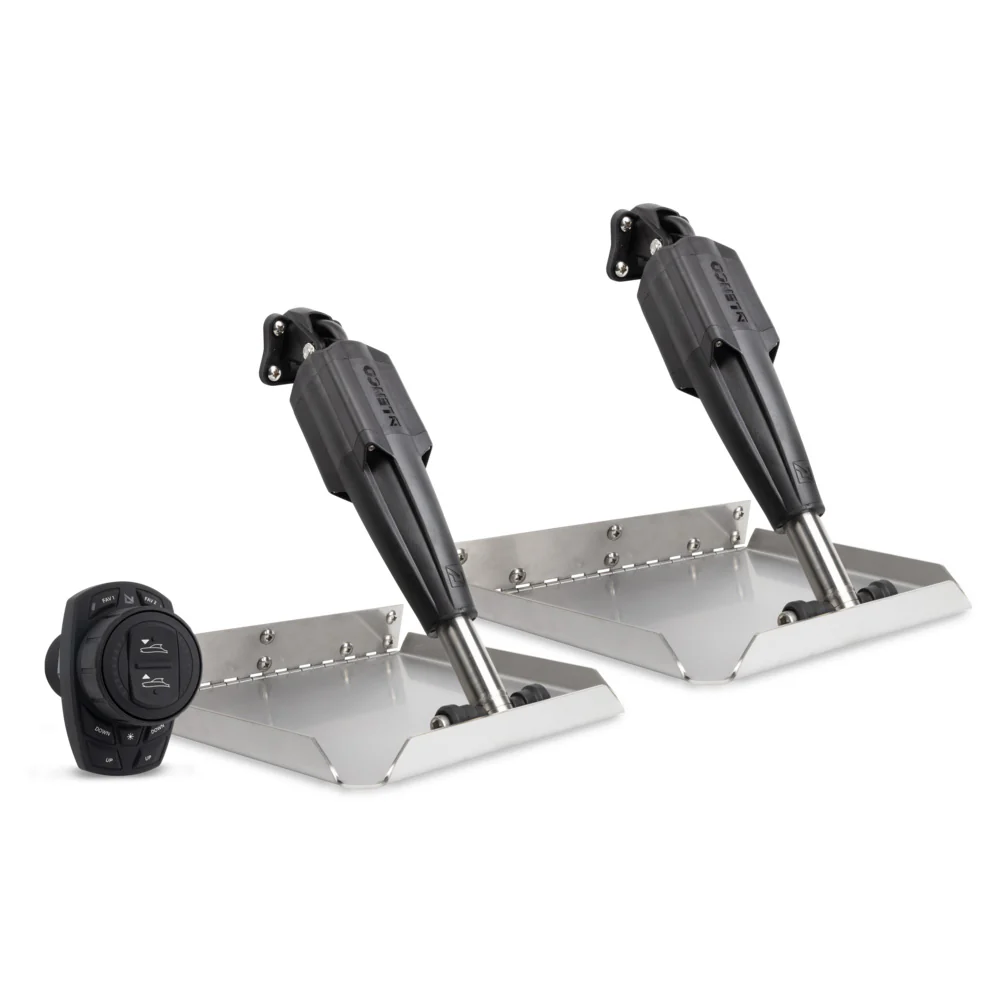

Lenco 12"x12" STD Trim Tab Kit w/Pro Control Assist [15183-106]
12"x12" STD Trim Tab Kit with Pro Control™ Assist
Features:
- Industry-leading connectivity - CAN-based protocol comes as standard, meaning ease of system integration and installation.
- Ease of use – precise control - Smart, sleek intuitive dial controller, designed to provide responsive precision controls.
- Instant access to favorite settings - Programmable memory position recall capabilities allow access to your two preferred trim tab settings at the touch of a button.
- Hands-free holeshot - Speed-based automatic deployment of the trim tabs – engage throttle and tabs deploy to get the boat on the plane quicker, plus automatic retract at slower speeds with no manual operation required.
- Built to last - Best-in-class 5-year warranty gives peace of mind to both boatbuilders and end users. Simple maintenance extends lifespan.
Specifications:
- Length x Width: 12"x12"
- Boat Length: 17'-30'
- Hinge Height: 2" (5.1cm)
- Minimum Transom Height: 11" (27.9cm)
- Keypad: Assist
Kit Includes:
- (1) Pro Control Assist Keypad (15175-106)
- (2) 12-gauge 304 (2.7 mm) stainless steel standard finish blades:
- Standard blades - with a 5/8" (1.6 cm) flared trailing edge.
- Edge Mount blades - with 1" (2.5 cm) turned-up edges a 5-degree taper on both sides to the trailing edge) and a 1/8" (3.2 mm) diameter hinge pin.
- (2) 2.25” Stroke SD Pro Actuators, 11.5” pin to pin (15189-001)
- (5) Micro C Tee Connector (30267-001D)
- Micro C Power Cable with Fuse and Ground (15197-101)
- (2) 6’ (1.82 m) Micro C Drop cables (15199-101), (1) 25’ (7.62 m) (30269-004) Micro C Drop cable
- (2) 6 Pin Deutsch to Micro C Actuator Network Adapter Cable (30377-001)
- (2) 3' (.91 m) Pro Control Actuator Power Pigtail (30378-001)
- (1) Wake Signal Adapter for Non-Mercury Systems (15207-101)
- (2) Corrosion proof Upper Mounting Brackets with gland seal (15193-101)
- (2) Corrosion-proof Lower Mounting Brackets (15194-101)
$722.10
Original: $2,406.99
-70%Lenco 12"x12" STD Trim Tab Kit w/Pro Control Assist [15183-106]—
$2,406.99
$722.10
Description
12"x12" STD Trim Tab Kit with Pro Control™ Assist
Features:
- Industry-leading connectivity - CAN-based protocol comes as standard, meaning ease of system integration and installation.
- Ease of use – precise control - Smart, sleek intuitive dial controller, designed to provide responsive precision controls.
- Instant access to favorite settings - Programmable memory position recall capabilities allow access to your two preferred trim tab settings at the touch of a button.
- Hands-free holeshot - Speed-based automatic deployment of the trim tabs – engage throttle and tabs deploy to get the boat on the plane quicker, plus automatic retract at slower speeds with no manual operation required.
- Built to last - Best-in-class 5-year warranty gives peace of mind to both boatbuilders and end users. Simple maintenance extends lifespan.
Specifications:
- Length x Width: 12"x12"
- Boat Length: 17'-30'
- Hinge Height: 2" (5.1cm)
- Minimum Transom Height: 11" (27.9cm)
- Keypad: Assist
Kit Includes:
- (1) Pro Control Assist Keypad (15175-106)
- (2) 12-gauge 304 (2.7 mm) stainless steel standard finish blades:
- Standard blades - with a 5/8" (1.6 cm) flared trailing edge.
- Edge Mount blades - with 1" (2.5 cm) turned-up edges a 5-degree taper on both sides to the trailing edge) and a 1/8" (3.2 mm) diameter hinge pin.
- (2) 2.25” Stroke SD Pro Actuators, 11.5” pin to pin (15189-001)
- (5) Micro C Tee Connector (30267-001D)
- Micro C Power Cable with Fuse and Ground (15197-101)
- (2) 6’ (1.82 m) Micro C Drop cables (15199-101), (1) 25’ (7.62 m) (30269-004) Micro C Drop cable
- (2) 6 Pin Deutsch to Micro C Actuator Network Adapter Cable (30377-001)
- (2) 3' (.91 m) Pro Control Actuator Power Pigtail (30378-001)
- (1) Wake Signal Adapter for Non-Mercury Systems (15207-101)
- (2) Corrosion proof Upper Mounting Brackets with gland seal (15193-101)
- (2) Corrosion-proof Lower Mounting Brackets (15194-101)
