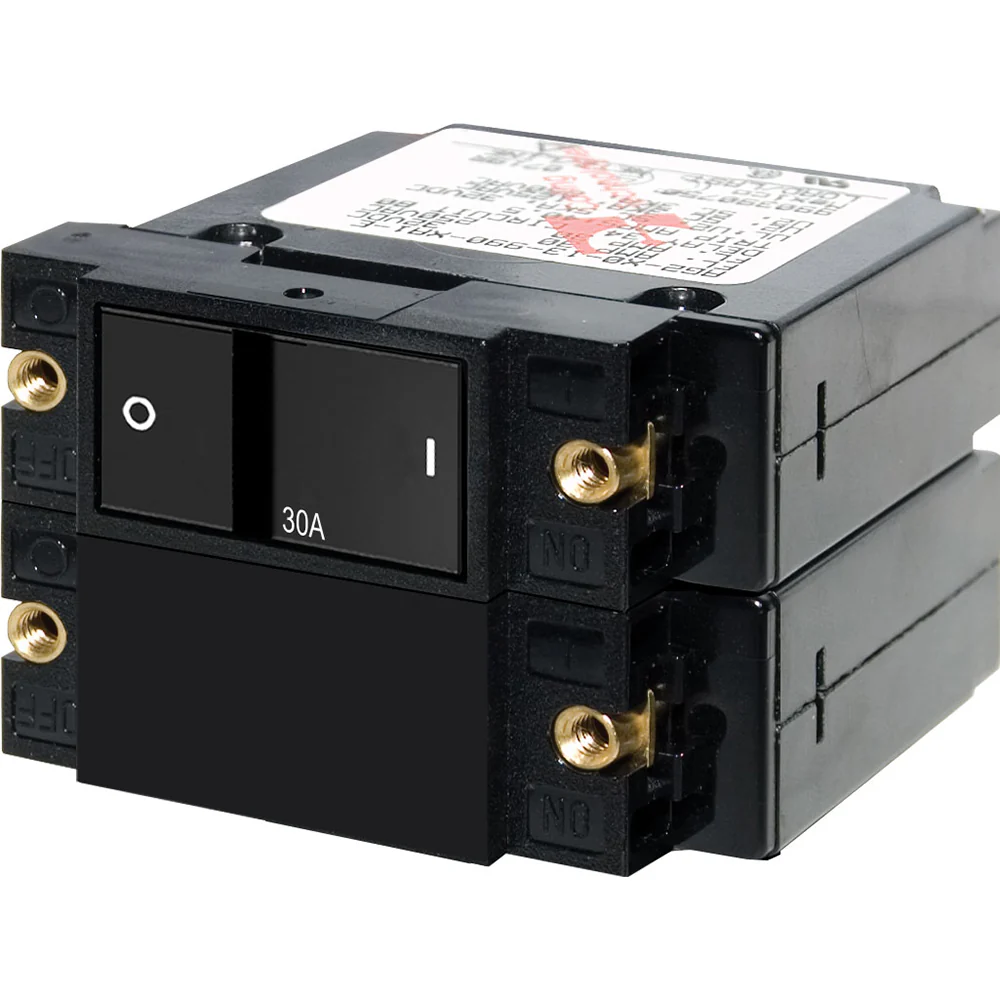

Blue Sea 7414 A-Series Flat Rocker Circuit Breaker - Double Pole - 30A [7414]

A-Series Flat Rocker Circuit Breaker - Double Pole - 30A

Features:

• Color actuator indicates "OFF" position

• "Trip Free" design cannot be held "ON" during fault current condition

• International ON/OFF symbols support vertical or horizontal mounting

Specifications:

• Amperage : 30A AC / 30A DC

• Actuator Style: Flat Rocker

• Poles: 2

• Maximum Voltage: 120V AC / 240V AC / 32V DC

• Circuit Breaker Type: Magnetic Hydraulic - trip free

• Interrupt Capacity: 3000A @ 240V AC / 1500A @ 240V AC[TUV] / 5000A @ 32V DC

• Minimum Operating Temperature: -40° C

• Maximum Operating Temperature: 85° C

• Mounting Screw: #6-32 Stainless Steel

• Mounting Screw Torque: 6 in-lb (0.68 Nm)

• Screw Terminal Torque: 14 in-lb (1.58 Nm)

• Switching Cycles: 10000

• Terminal Screw: #10-32 Stainless Steel

• Weight: 0.38lb (0.17 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Amperage: 30a
• Box Dimensions: 2"H x 3"W x 4"L WT: 0.35 lbs
• UPC: 632085074142
