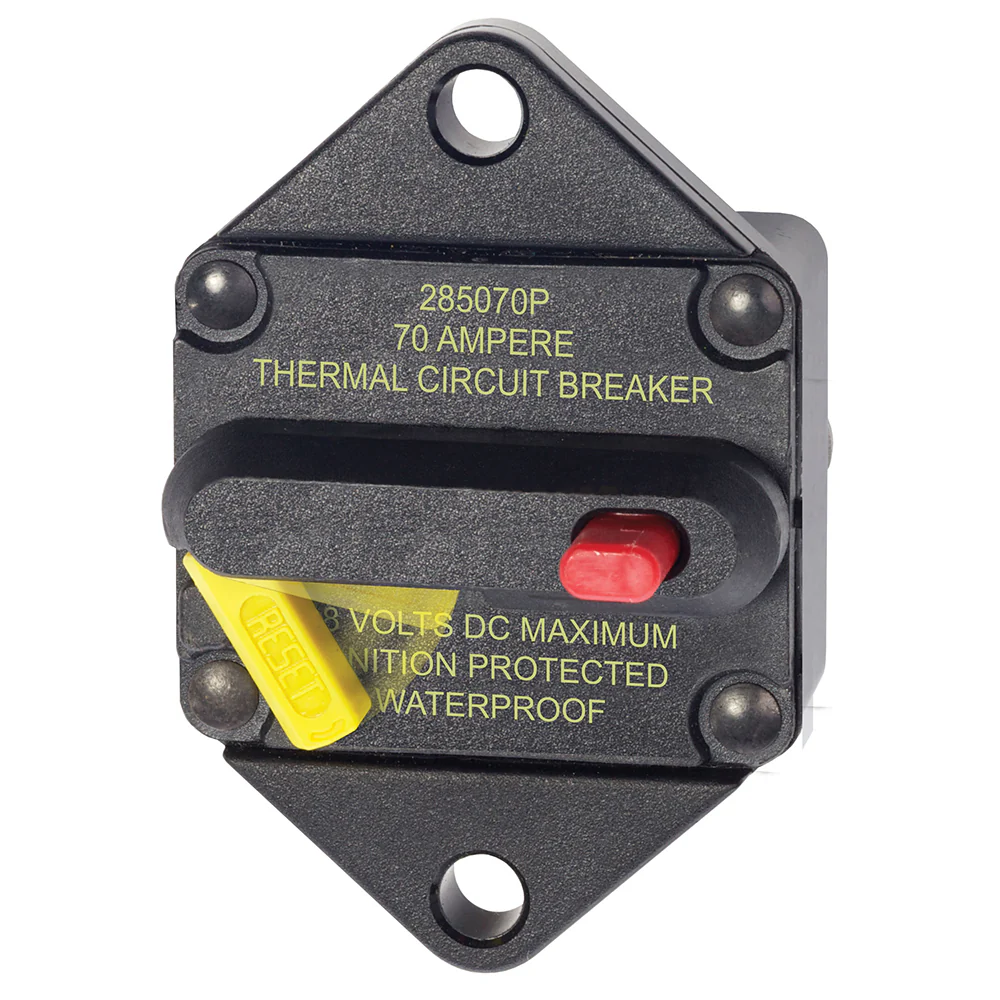

Blue Sea 7085 70 Amp Circuit Breaker Panel Mount 285 Series [7085]
285-Series Thermal Circuit Breaker Panel Mount - 70A
Part#7085
- Drop in replacement for 185-Series Circuit Breakers
- Visible reset lever shows open condition
- Ignition protected - Safe for installation aboard gasoline powered boats
- Meets SAE J1171 external ignition protection requirements
- Weather Resistant
- Combines switching and circuit breaker function into one unit
- "Trip Free" - cannot be held closed after trip
* Do not use for direct control of high inrush loads such as motor starting.
Specifications
Interrupt Rating 3,000A @ 48V DC*
Maximum Voltage Rating 48 Volts DC
Operating Temperature Range -40°C to 85°C
Circuit Breaker Type Thermally Responsive Bi-metal blade
Circuit Breaker Class Type III - Switchable / Manual Reset - Trip Free
Terminal Stud Size M6 (accepts 1/4" Ring Terminal)
Terminal Stud Torque 50 in-lb
Mounting Holes Accept 1/4" (M6) screw
Weight Lb (Kg) 0.33 lb (0.15 kg)
* AIC ratings achieved using SAE J1625
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Amperage: 70a
- Box Dimensions: 2"H x 5"W x 9"L WT: 0.3 lbs
- UPC: 632085070854
Brochure (pdf)
